Stepping-Motor-Driver Signal-Generator Cycle Frequency-Duty Pulse Module NE555 1PCS Wave

4.9 42 Reviews
$9.08 $7.57
  • Qty: 1
  • Qty: 2
  • Qty: 3

$7.57

$9.08

1x Stepping-Motor-Driver Signal-Generator Cycle Frequency-Duty Pulse Module NE555 1PCS Wave

1

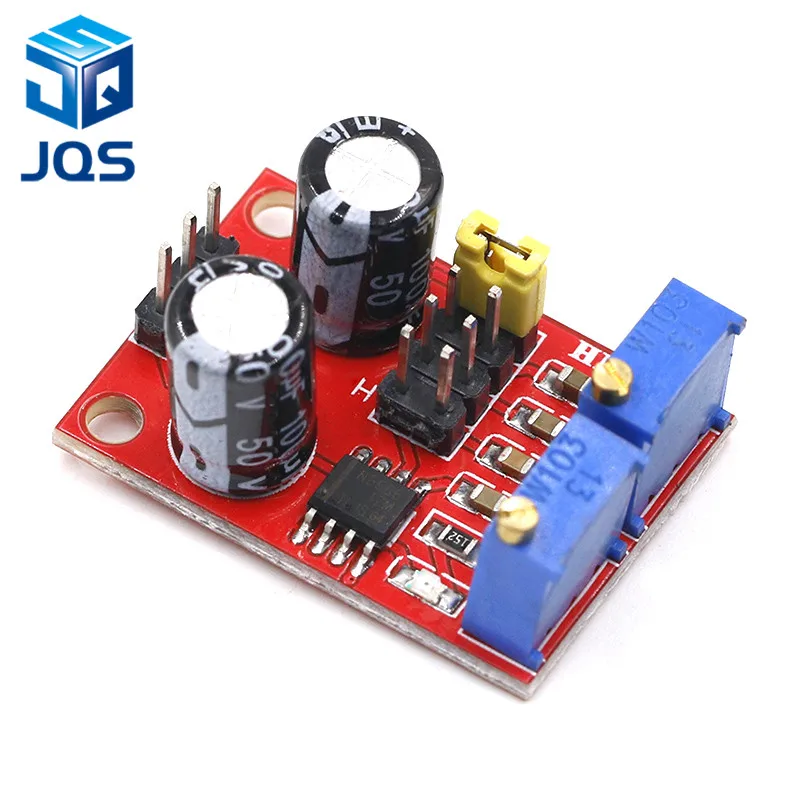

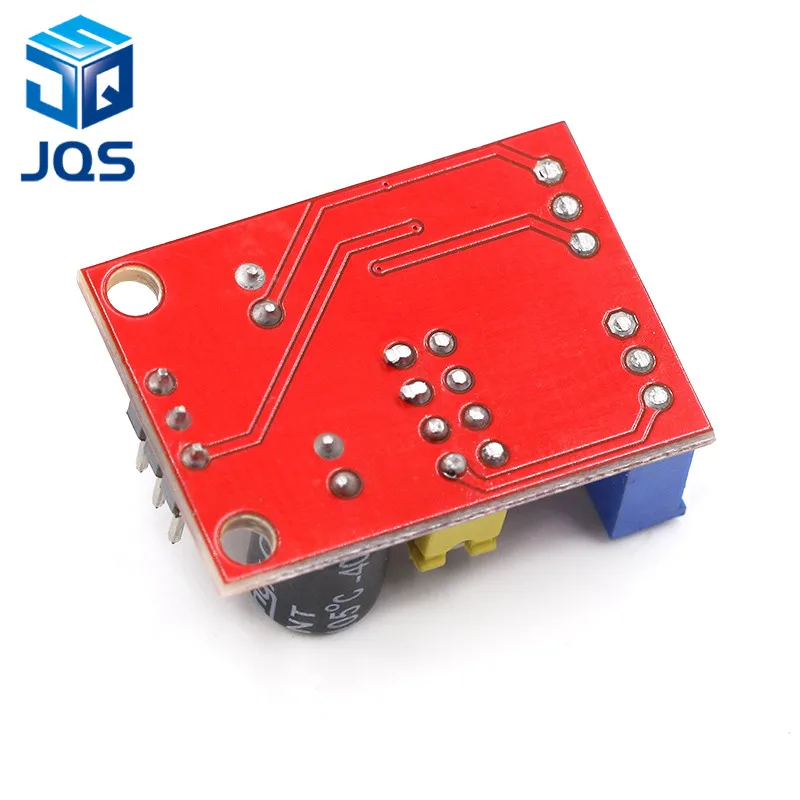

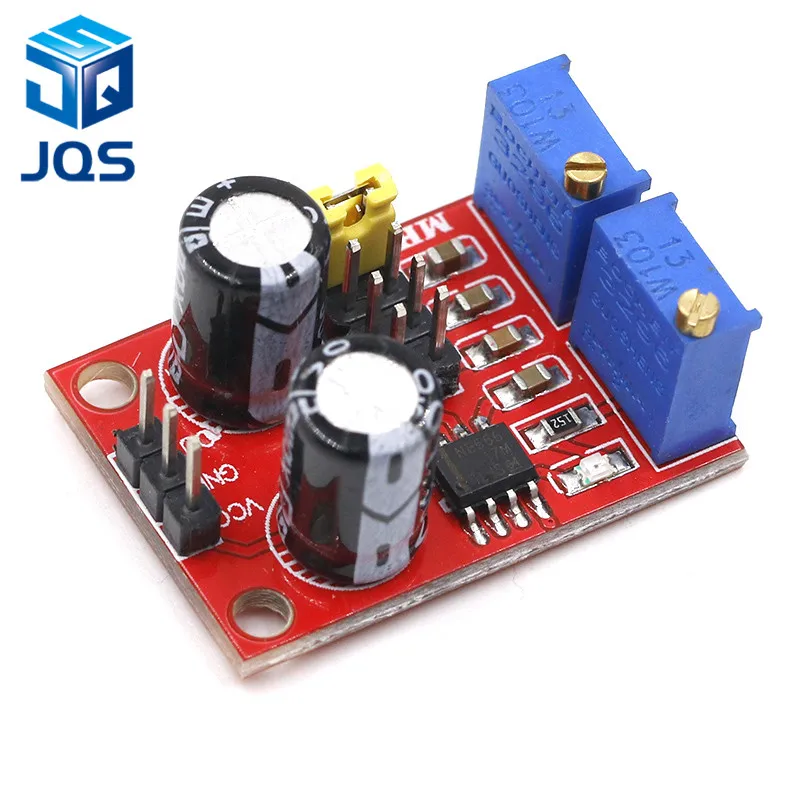

Product name: NE555 pulse module

Product size: 31.0 mm * 31.0 mm * 15.0 mm (l x w x h)

Colours:Red        Package Weight: :7.52 g/pcs

Materials: FR4 + electronic components

Size chart:







Instructions:











Performance:

1.Input Voltage: 5V-15VDC. when power supply is 5V , the output current can be 15MA around;when 12V power supply, the output current can 35MA around;
2.Input current: >=100MA;
3.Output amplitude: 4.2V V-PP to 11.4V V-PP. (Different input voltage, the output amplitude will be different)
4.Maximum output current: >=15MA (5V power supply, V-PP greater than 50%), >=35MA (12V power supply, V-PP greater than 50%)
4.Output with LED indication(low level ,LED will on; high level,LED will off;low frequency, the LED flashes);
5.The output requency range is selectable:
 LF file: 1Hz ~ 50Hz  IF file: 50Hz ~ 1kHz
 High-frequency file: 1KHz ~ 10kHz
 HF file: 10kHz ~ 200kHz
5.Cycle T=0.7 (RA+2RB) C  (RA, RB for 0-10K adjustable);
Low frequency:C=100UF;   Intermediate frequency:C=1UF;
M-H frequency: C=0.1UF;   High frequency: C=0.001UF,
Note:
Before changing the frequency, please power off
Application:
1. Used as a square wave signal generator, offer the square wave signal for the use of the experimental development.
2. Used to produce driving stepper motor drives, offer the square wave signal.
3. Adjustable pulse for the use of MCU.
4. Generate adjustable pulse control circuit.

2
_MG_4033 _MG_4034 _MG_4035 _MG_4036 _MG_4037 _MG_4038
